Fremont sits on a mix of alluvial deposits and Bay Mud from the ancient Lake Alameda, conditions that demand a thorough existing pavement evaluation before any overlay or reconstruction. The 2022 IBC and local Alameda County standards require a minimum CBR of 5 for subgrade, but we regularly see values below 3 in the wetter areas near the bay. That is why our team follows ASTM D4694 for falling weight deflectometer (FWD) tests and ASTM D1586 for soil classification alongside the pavement core analysis. For deeper subgrade insight we cross-reference results with a georradar scan to map hidden voids or moisture pockets that could compromise the new surface. The combination of these methods gives Fremont engineers a reliable baseline for design life projections.
We have seen CBR values drop below 3 in Fremont's bay-adjacent zones, making FWD back-calculation essential for realistic overlay design.
Methodology and scope
What we observe often in Fremont is that the pavement on older industrial roads along Boyce Road and Thornton Avenue shows extensive fatigue cracking from decades of truck loading on the soft Bay Mud subgrade. Our existing pavement evaluation protocol here always includes a full traffic count review plus dynamic cone penetrometer (DCP) testing per ASTM D6951 to measure in-situ strength profile. The laboratory then processes core samples for resilient modulus (Mr) following AASHTO T-307.
Layer thickness and material type per core log
Asphalt binder content via ignition oven (ASTM D6307)
Subgrade moisture and density (ASTM D6938)
Falling weight deflectometer for back-calculated moduli
This data feeds directly into the overlay design. When the subgrade is especially weak we recommend preload and surcharge to accelerate consolidation before placing the new pavement structure.
Technical reference image — Fremont
Local considerations
A recent project on a 6-lane arterial near Fremont Central Park showed pavement failure within two years of a previous overlay. The original existing pavement evaluation had skipped the FWD test and relied only on visual distress surveys. Our investigation found a 2-inch-thick peat layer at 3 ft depth that was never identified. The subgrade modulus was overestimated by 40%, leading to an under-designed asphalt thickness. That mistake cost the city an emergency rehabilitation. We always insist on combining at least one deflection test with the core analysis to catch these stratigraphic surprises.

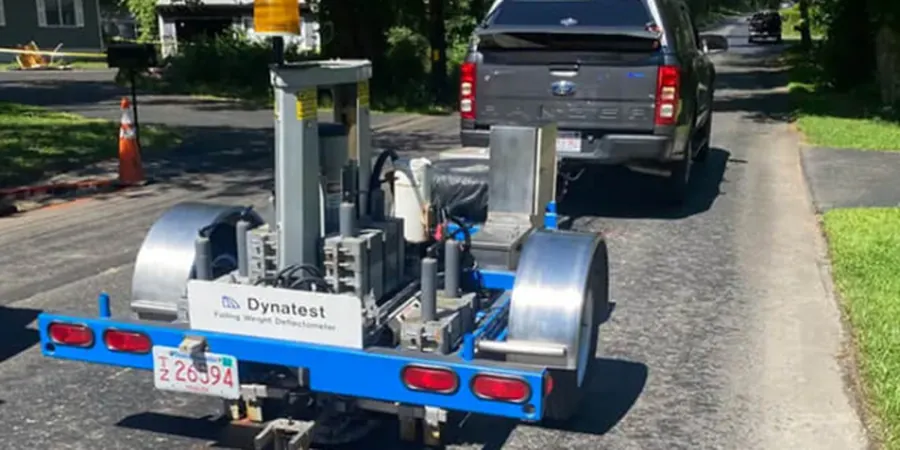

Falling weight deflectometer survey with 9,000 lb load at 50-ft intervals. Back-calculation of layer moduli using ELMOD or EVERCALC software. Includes temperature correction per AASHTO PP 62.
02
Pavement Coring & Laboratory Analysis
Extraction of 4-inch diameter cores at critical locations. Lab tests for thickness, density, binder content, gradation, and moisture susceptibility. Results within 5 business days.
03
DCP Subgrade Profiling
Dynamic cone penetrometer testing to 3-ft depth at 10-ft intervals. Provides continuous CBR profile and identifies weak layers. Ideal for soft Bay Mud areas in Fremont.
04
Full Structural Evaluation Report
Comprehensive analysis combining FWD, cores, DCP, and traffic data. Delivers remaining life estimate, overlay thickness recommendations, and cost-benefit comparison of rehabilitation alternatives.
What is the typical cost of an existing pavement evaluation in Fremont?
For a standard 4-lane arterial road section of about 2 miles, the cost ranges from US$1,410 to US$4,140 depending on the number of FWD drops, cores, and laboratory tests. Contact us with your project length and required scope for a firm quote.
How long does a pavement evaluation take from start to finish?
Field work usually takes one to two days for a typical road segment. Laboratory analysis adds another five to seven business days. The final report is delivered within ten working days after field completion.
Which ASTM standards do you follow for pavement core testing?
We follow ASTM D1586 for soil classification during coring, ASTM D6307 for binder content by ignition, and ASTM D6938 for in-situ density and moisture. All tests are performed under our ISO 17025 scope.
Do you evaluate pavement on private parking lots or only public roads?
We evaluate both public roads and private parking lots, industrial yards, and airport aprons. For parking lots in Fremont, we typically reduce the FWD grid spacing to 25 ft to capture local variability from previous patches.
