The subsurface conditions in Fremont are dominated by deep alluvial deposits of the Santa Clara Valley, with soft to medium stiff clays and silty sands extending well past 30 meters in many areas. Groundwater is typically encountered between 2 and 4 meters below grade, which makes temporary and permanent excavation support a critical challenge. For any project involving deep basements, cut‑and‑cover structures, or shoreline stabilization along the Bay, sheet pile wall design must account for high lateral earth pressures, seepage forces, and the potential for liquefaction in loose sand layers during a seismic event. We integrate these site‑specific conditions with local standards to deliver reliable wall solutions that perform under Fremont's unique geotechnical setting. Before finalizing the wall embedment, we often recommend a permeability test in the field to better understand groundwater flow regimes that directly affect drainage design behind the wall.
In Fremont's alluvial soils, sheet pile wall design hinges on accurate groundwater modeling and a realistic assessment of undrained shear strength in the soft clay layers.
Methodology and scope
Comparing the soil profile near the Ardenwood area with that around Central Park reveals notable differences in consistency and stratigraphy. In Ardenwood, the upper 6 meters consist of stiff clays with occasional sand lenses, while near the lake the profile includes a soft clay layer up to 4 meters thick underlain by dense sands. These contrasts directly influence the selection of sheet pile section, driving method, and anchor requirements. For Fremont projects, we typically evaluate the following parameters during the design phase:
Effective stress friction angle and undrained shear strength of clay layers
Coefficient of horizontal subgrade reaction for lateral deflection estimates
Seismic peak ground acceleration and site class per ASCE 7
Groundwater level during dry and wet seasons
This detailed characterization allows us to optimize the wall embedment depth and overall stability.

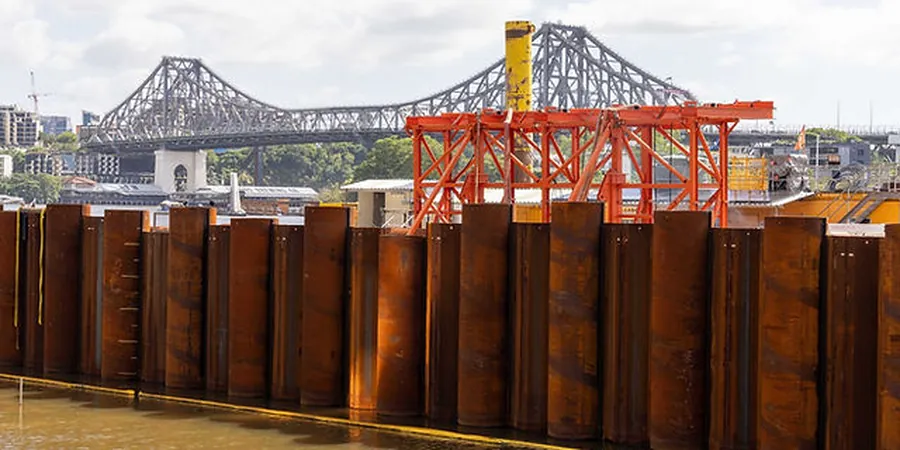

Technical reference image — Fremont
Local considerations
In Fremont, one of the most common oversights we see is underestimating the effect of the high groundwater table on sheet pile wall stability during a seismic event. When a strong earthquake hits, excess pore pressure can build up in loose sand layers behind the wall, reducing effective stress and increasing lateral load on the structure. This is especially critical near the shoreline and along creeks where the sand layers are looser. A wall that passes static checks may fail under these transient conditions unless the design explicitly includes liquefaction potential and post‑peak residual strength. Neglecting these factors can lead to excessive wall deflection or even collapse.
Boreholes with Standard Penetration Testing and undisturbed sampling to characterize soil strength, groundwater conditions, and liquefaction susceptibility. We provide design parameters per IBC and ASCE 7.
02
Structural wall design and verification
Complete design of anchored or cantilevered sheet pile walls including embedment depth, section selection, anchor load, and global stability analysis using limit equilibrium and finite element methods.
Applicable standards
IBC 2021 (Chapter 18 – Soils and Foundations), ASCE 7-22 (Seismic Loads and Site Classification), ASTM D1586-18 (Standard Test Method for SPT), FHWA NHI-05-003 (Earth Retaining Structures Manual)
Frequently asked questions
What is the typical cost range for a sheet pile wall design study in Fremont?
For a standard project in Fremont, the geotechnical investigation and design report for a sheet pile wall typically ranges between US$1.620 and US$5.620, depending on the number of borings, complexity of soil conditions, and seismic analysis required.
How does the high water table in Fremont affect sheet pile wall design?
The high water table increases hydrostatic pressures behind the wall and reduces the effective weight of the soil, which can lower the factor of safety against sliding and overturning. We always include long‑term and short‑term drainage design, weep holes, or a drainage blanket to control pore pressures.
What is the difference between a cantilevered and an anchored sheet pile wall?
A cantilevered wall resists lateral earth pressure solely through its embedment depth, making it suitable for walls up to about 5 meters. An anchored wall uses one or more rows of tiebacks or ground anchors to provide additional support, allowing greater heights and reducing deflection. The choice depends on wall height, soil strength, and allowable movement.
