A common oversight we see among contractors in Fremont is assuming that surface gutters alone handle road drainage. The real problem sits below grade. Fremont sits on a mix of alluvial fan deposits and ancient bay muds, which means water percolates unevenly and can saturate subgrades without visible ponding. Without proper geotechnical road drainage, that trapped moisture softens the base layer and triggers differential settlement. We have seen roads that looked fine after a rain but developed longitudinal cracks within two seasons. That is why we start every assessment with a detailed infiltration test to map how water actually moves through the soil profile. You cannot design an effective drainage system if you do not know where the water is going.
Proper subsurface drainage in Fremont requires understanding legacy agricultural tiles and perched water tables beneath modern roadways.
Methodology and scope
In Fremont, we often find that the old agricultural drainage tiles from the orchards of the 1950s are still buried beneath modern roadways. Those clay pipes are now cracked and clogged, turning them into unintended water collectors. A proper geotechnical road drainage design here must account for these legacy systems. Our approach combines trench drains, geocomposite drainage layers, and outlet protection sized for the 10-year storm event per Caltrans standards. We also integrate stability analysis for slopes when the road alignment cuts through the hillsides near Mission Peak, where perched water tables are common. The goal is to intercept water before it reaches the pavement structure. We verify permeability with field tests and then specify filter fabrics that match the local soil gradation, which is critical in Fremont because the silty sands here clog standard geotextiles rapidly.

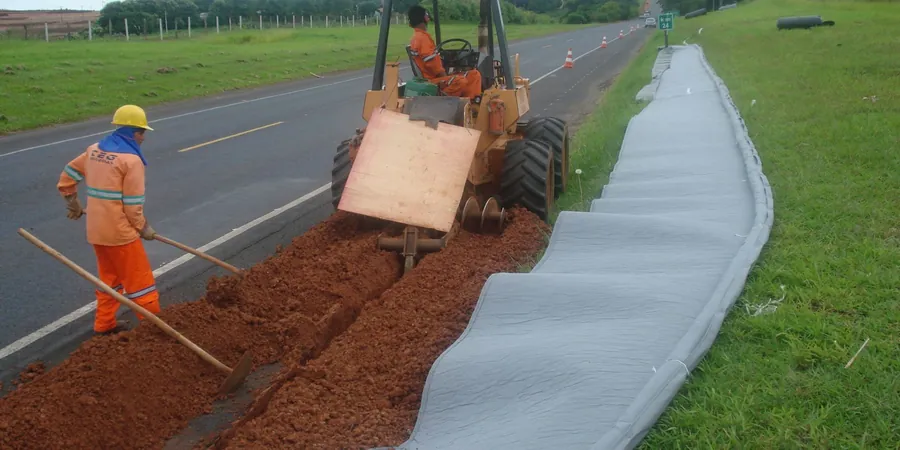

Technical reference image — Fremont
Local considerations
The difference between the flat alluvial plains near the Fremont BART station and the steeper slopes along Mission Boulevard is night and day. In the flats, the risk is shallow groundwater that never fully drains, leading to subgrade pumping under traffic loads. Up in the hills, the danger is slope saturation that can mobilize a debris flow during a multi-day atmospheric river event. In both cases, inadequate geotechnical road drainage accelerates pavement failure and can compromise adjacent structures. We have seen retaining walls fail in the Niles district simply because a road drain outlet was misaligned. That is why we always run a ground-penetrating radar survey to locate buried utilities and old drainage lines before we design the new system.
10⁻⁴ to 10⁻⁶ cm/s (typical for Fremont alluvial silts)
Drain Pipe Diameter
4 to 8 inches (perforated HDPE, ASTM F405)
Geocomposite Drainage Layer
Transmissivity ≥ 1.0 × 10⁻⁴ m²/s at design gradient
Filter Fabric Opening Size (AOS)
US #40 to #100 sieve (ASTM D4751)
Outlet Protection
Riprap D50 = 6 to 12 inches per FHWA HEC-14
Associated technical services
01
Subsurface Drainage System Design
Design of trench drains, interceptor drains, and underdrains calibrated to Fremont's soil permeability and seasonal rainfall patterns. Includes outlet design per Caltrans HDM standards.
02
Geocomposite & Filter Fabric Specification
Selection of geotextiles and drainage composites based on site-specific soil gradation and flow requirements. We run permeability tests in our ISO 17025 lab to avoid clogging in silty sands.
03
Drainage Retrofit & Legacy Pipe Remediation
Identification and removal of old agricultural tile drains, followed by installation of modern HDPE perforated pipes with cleanouts and positive outlets. Includes video inspection pre- and post-construction.
Applicable standards
Caltrans Highway Design Manual (HDM) Chapter 830 – Roadside Channels and Drainage, ASTM D6393-14 – Standard Test Method for Determining Geocomposite Drainage, FHWA HEC-14 – Hydraulic Design of Energy Dissipators for Culverts and Channels, ASTM D4716 – Test Method for Determining Hydraulic Transmissivity of Geocomposites
Frequently asked questions
How much does geotechnical road drainage design cost in Fremont?
For a typical residential street or subdivision road in Fremont, the geotechnical drainage design and testing package ranges between US$950 and US$2,280. This includes infiltration testing, pipe sizing, and filter fabric specification. Larger arterial roads with complex subsurface conditions can be higher.
What soil conditions in Fremont make road drainage difficult?
Fremont has a mix of young alluvial silts and ancient bay muds (San Francisco Bay Mud) that have low permeability and high shrink-swell potential. These soils trap water near the surface and are prone to pumping under traffic. Legacy agricultural tiles from the 1950s often redirect water unpredictably.
How long does a typical road drainage study take?
A standard study for a 500-foot road section takes 7 to 10 business days from field work to final report. This includes two infiltration tests, soil classification (ASTM D2487), and a drainage design memorandum with pipe sizing and outlet details.
