Fremont sits at the southeastern edge of San Francisco Bay, where elevations range from sea level along the baylands to over 200 feet in the Mission Peak foothills. This topographic contrast, combined with undocumented fill and ancient alluvial deposits, demands a rigorous approach to retaining wall design. Our team evaluates lateral earth pressures, surcharge loads, and groundwater conditions specific to each Fremont parcel, ensuring that every wall — whether in a hillside subdivision or a commercial lot — meets the lateral support criteria of IBC 2022 and AASHTO LRFD. Before finalizing a wall geometry, we often cross-check slope stability using estabilidad de taludes to verify global safety factors under static and seismic loads.
In Fremont's seismic zone 4, the wall design must account for both static lateral pressures and the dynamic increment from earthquake shaking — often doubling the base shear demand.
Methodology and scope
Fremont's Mediterranean climate brings wet winters and dry summers, causing cyclic moisture changes in expansive clays common across the Irvington and Mission San Jose districts. These clay-rich soils can heave or shrink, imposing additional lateral pressures on any retaining structure. For walls taller than four feet, we incorporate drained granular backfill and geotextile separation layers to mitigate hydrostatic buildup. Where adjacent slopes are steep, we complement the design with monitoreo taludes to track long-term movement and confirm that the wall's toe and key remain stable. Our retaining wall solutions also factor in the zone 4 seismic coefficient required by ASCE 7-22 for the Fremont area, which directly influences the wall's seismic earth pressure increment.

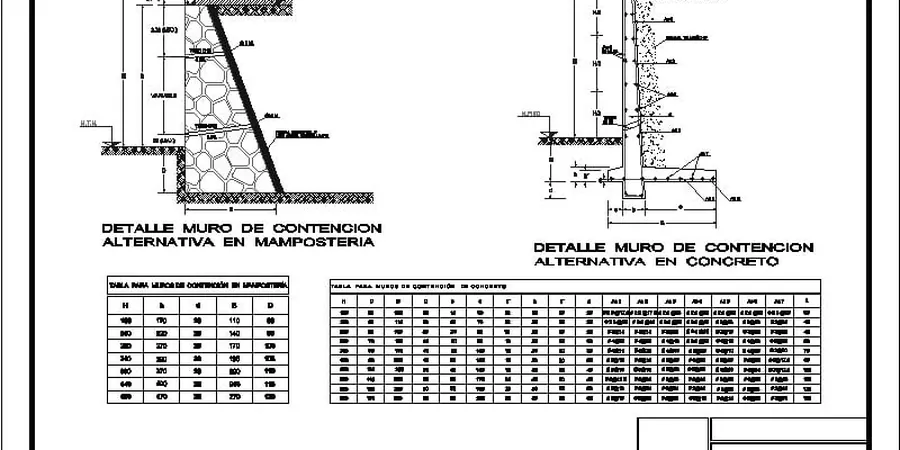

Technical reference image — Fremont
Local considerations
The alluvial fan deposits underlying much of Fremont's central corridor create variable soil profiles where stiff clay layers alternate with loose sand lenses. During a seismic event, these loose sands may liquefy, reducing lateral support at the wall toe and increasing driving forces. Additionally, undocumented fill from the 1960s and 1970s in areas like Centerville lacks compaction certification, posing differential settlement risks behind newly built walls. Our field investigation always includes a minimum of two borings per wall alignment to identify these weak zones before the structural design phase begins.
1.5 / 1.1 minimum per IBC sliding and overturning checks
Associated technical services
01
Gravity and Cantilever Wall Design
Concrete or masonry cantilever walls analyzed for sliding, overturning, and bearing capacity per IBC and ACI 318. We size the base key and heel length to resist the active wedge, using site-specific soil parameters from laboratory triaxial tests.
02
Reinforced Soil (MSE) Wall Design
Mechanically stabilized earth walls with steel or geosynthetic reinforcement, designed per FHWA guidelines. We evaluate pullout capacity, connection strength, and facing stability for heights up to 30 feet in Fremont's hillside subdivisions.
03
Seismic Retrofit and Tieback Walls
Retrofit of existing walls that lack sufficient seismic capacity, using ground anchors or soil nails. We design tieback systems with corrosion protection and verify the global stability of the anchored wall system under the ASCE 7-22 seismic load combination.
Applicable standards
IBC 2022 (International Building Code, Chapter 18: Soils and Foundations), ASCE 7-22 (Minimum Design Loads for Buildings, seismic earth pressure Section 12.13), AASHTO LRFD Bridge Design Specifications, 8th Ed. (Section 11: Abutments and Retaining Walls), ASTM D1586-18 (Standard Test Method for Standard Penetration Test and Split-Barrel Sampling)
Frequently asked questions
What soil parameters are most critical for retaining wall design in Fremont?
The friction angle (phi) and cohesion of the retained soil, along with the unit weight and groundwater depth, are essential. For Fremont's bayland clays, we also need undrained shear strength (Su) to evaluate short-term stability during construction. These are obtained from SPT samples and laboratory triaxial tests per ASTM D4767.
How does the seismic design category affect wall design in Fremont?
Fremont falls in Seismic Design Category D (and E near the bay), requiring a seismic earth pressure increment of 0.3 to 0.5 times the static active pressure. The wall must also resist a seismic base shear equal to 0.5 times the weight of the wall plus the retained soil wedge, applied at the wall centroid.
What is the typical cost range for a retaining wall design package in Fremont?
A complete design package — including subsurface exploration, analysis, and sealed calculations — typically ranges from US$1,100 to US$4,110 depending on wall height, soil complexity, and the number of borings required. This does not include the contractor's construction costs.
