Fremont grew fast after the 1950s, with subdivisions spreading across former orchards and salt flats. Much of the city sits on alluvial deposits from the Coyote Hills watershed, layered with soft clays and dense sands. That mix means pile foundation design here is never straightforward. We regularly see projects where skin friction carries most of the load in the upper clay strata, then switches to end bearing once the tip reaches the Older Alluvium or bedrock. Getting that transition right is why we run a dedicated pile skin friction vs. end bearing analysis on every deep foundation job in Fremont. Before mobilizing the rig, we also cross-check with a capacity of load test to validate the design assumptions against measured soil behavior.
In Fremont's alluvial soils, skin friction can drop 40% from one dry season to the next if groundwater rises.
Methodology and scope
At an elevation of just 52 feet above sea level, Fremont's groundwater table sits shallow across much of the Irvington and Niles districts — typically 6 to 12 feet deep. That saturation reduces effective stress in the upper clay layers, which directly lowers side friction along the pile shaft. Our team measures unit skin friction using the Alpha method for cohesive soils and the Beta method for sands, then compares those values against end bearing calculated from N-values corrected per ASTM D1586-18. We recently worked a site off Paseo Padre Parkway where the top 25 feet were soft bay mud (N-values of 3 to 6), underlain by dense silty sand with blow counts over 50. That profile screamed for a combined friction-and-end-bearing design. We also pair this analysis with stability of taluses when the pile cap sits near a slope, to guard against lateral spreading.

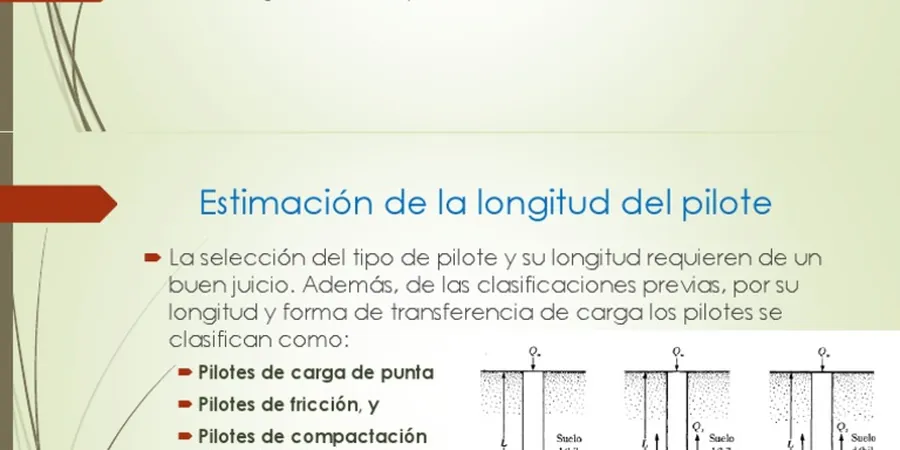

Technical reference image — Fremont
Local considerations
Compare two Fremont neighborhoods — the Mission San Jose district with its shallow Franciscan bedrock versus the Central district where bay mud extends 80 feet. In Mission San Jose, end bearing governs and piles barely need 30 feet. Over in Central, the soft clay can't support tip loads, so skin friction along the shaft must carry the full design load. The worst risk is assuming uniform soil across the site. We've seen projects where the geotech report gave one design profile, but an old creek channel filled with peat turned up mid-lot, dropping skin friction by half. That's why we always correlate our pile skin friction vs. end bearing analysis with continuous SPT borings spaced no more than 75 feet apart.
Alpha method: 0.45 to 0.75 × undrained shear strength
Unit skin friction (granular)
Beta method: 0.20 to 0.45 × effective vertical stress
End bearing (cohesive)
9 × undrained shear strength (Nc = 9)
End bearing (granular)
Meyerhof: 40 × N (blow count) × D/b ≤ 400 × N
Groundwater correction
Reduced effective stress below water table per ASCE 7
Factor of safety applied
2.0 (skin) + 3.0 (end) per IBC Chapter 18
Reference standard
ASTM D1143-20 (static load test verification)
Associated technical services
01
Borehole Logging & SPT Profiling
Continuous soil sampling with SPT at 5-foot intervals to measure N-values and classify layers per ASTM D2487. We log refusal zones and groundwater strikes for every boring.
02
Laboratory Shear Strength Testing
UU triaxial and direct shear tests on undisturbed tube samples to determine undrained shear strength and drained friction angle, used directly in skin friction and end bearing equations.
03
Load Transfer Analysis (t-z & q-z Curves)
Nonlinear load-settlement modeling using t-z curves for shaft resistance and q-z curves for tip resistance. We calibrate against local Fremont soil data from past projects.
04
Static Load Test Interpretation
Analysis of maintained-load and quick-load test results per ASTM D1143 to back-calculate field-measured skin friction and end bearing, then adjust design factors.
Applicable standards
ASCE 7-22 (Minimum Design Loads, Section 12.13 – Foundation Design), IBC 2021 (Chapter 18 – Soils and Foundations, Section 1808.2.2), ASTM D1586-18 (Standard Test Method for SPT), ASTM D1143-20 (Standard Test Method for Piles Under Static Axial Compressive Load), FHWA-NHI-16-072 (Design and Construction of Driven Pile Foundations)
Frequently asked questions
What is the main difference between skin friction and end bearing in pile design?
Skin friction is the load carried by the soil-pile interface along the shaft, while end bearing is the load transferred through the pile tip to a competent bearing stratum. In Fremont's layered soils, most of the capacity comes from skin friction in the upper clay layers, then shifts to end bearing once the tip reaches dense sand or bedrock below 40 feet.
How much does a pile skin friction vs. end bearing analysis cost in Fremont?
For a typical residential or small commercial project in Fremont, the analysis ranges between US$1,090 and US$3,470. This includes field borings, laboratory testing, and a design report with t-z curves. The final cost depends on the number of borings, soil variability, and whether a static load test is required.
Which Fremont soil layers give the highest skin friction values?
The densest skin friction values come from the Older Alluvium sands found 30 to 60 feet deep across the Central and Irvington districts, where N-values exceed 40 and unit skin friction reaches 2.5 to 3.5 ksf. The soft bay mud at the top delivers only 0.3 to 0.6 ksf, so we always advise extending piles through that layer into the competent sand below.
