Slope Stability Analysis in Fremont

Slope stability analysis in Fremont follows IBC and ASCE 7 criteria, which matter here because the city sits on the eastern edge of the Santa Cruz Mountains. The Franciscan Complex bedrock, overlain by colluvium and old landslide deposits, creates chronic instability on slopes above Mission Boulevard. We model failure surfaces using Spencer's method and check seismic pseudo-static loads per ASCE 7-16. For cuts near residential lots, we combine limit-equilibrium with a monitoreo de taludes system to track real-time movement. Our lab holds ISO 17025 accreditation, so every shear-strength parameter we deliver is defensible in permitting.

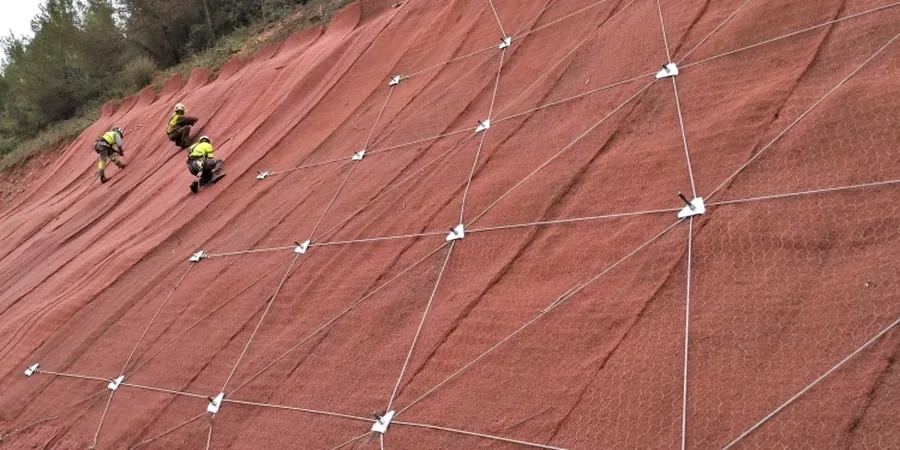

Illustrative image of Estabilidad taludes in Fremont

In Fremont, the old landslide deposits on Mission Ridge can reactivate with a single wet winter if the slope is undercut.

Methodology and scope

Soils on the Niles side of Fremont are mostly stiff clays and sandstone colluvium, while the bay flats near the Auto Mall Parkway are soft estuarine clays with high plasticity. That contrast drives our approach. On the hills, we run long-term drained triaxial tests to get effective cohesion and friction angle. In the flats, undrained parameters control short-term stability. We also check groundwater levels from the shallow aquifer, which fluctuates with the seasonal rains and can drop factor of safety below 1.3. Before designing a muros de contencion on a sloped lot, we model both static and seismic cases. The team uses Slide and SLOPE/W to generate critical slip surfaces and outputs safety factors per IBC chapter 18.

Local considerations

The biggest risk with slope stability analysis in Fremont is underestimating the perched water table after heavy rain. We install inclinometers and standpipes early to capture seasonal pore pressure changes. Another hazard is the old fill on the bay side, which can undergo undrained loading and trigger a progressive failure. Our field crews take Shelby tube samples at 5-foot intervals to get undisturbed specimens. We run direct shear and triaxial tests in our Fremont lab, and cross-check results against the local geologic maps from the USGS. The goal is to catch the weak zone before excavation starts.

Technical parameters

Parameter	Typical value
Factor of safety (static)	≥ 1.5 (IBC)
Factor of safety (seismic)	≥ 1.1 (pseudo-static)
Shear strength test	Triaxial CU / CD per ASTM D4767
Groundwater monitoring	Standpipe piezometers or vibrating wire
Seismic coefficient	SDS = 0.7g (Site Class D typical)
Analysis method	Spencer / Morgenstern-Price

Associated technical services

Limit-Equilibrium Analysis

Circular and non-circular slip surfaces using Spencer and Morgenstern-Price methods. We model multiple layers, seismic loads, and surcharge.

Shear Strength Testing

Triaxial CU and CD, direct shear, and ring shear for residual strength. All tests run in our ISO 17025 soil lab.

Groundwater & Pore Pressure Monitoring

Piezometer installation and periodic logging to measure seasonal fluctuations. Data feeds directly into the stability model.

Remediation Design Support

We help design soil nails, buttress fills, and drainage systems. We also provide construction QA testing for remedial work.

Frequently asked questions

What is the typical cost for a slope stability analysis in Fremont?

The typical cost ranges between US$1.140 and US$4.640, depending on slope height, number of sections, and whether you need piezometers or advanced triaxial testing.

How is seismic loading handled for slopes in Fremont?

We use ASCE 7-16 to determine the seismic coefficient based on the site class. For Site Class D (common in Fremont), SDS is around 0.7g. We apply a pseudo-static horizontal load equal to 0.5 times SDS and check that the factor of safety stays above 1.1.

Do I need a slope stability analysis for a single-family lot in the hills?

Yes, the City of Fremont requires a geotechnical report with slope stability analysis for any cut or fill steeper than 2:1 on lots in the Mission Peak and Niles areas. The analysis must include both static and seismic conditions.
