In Fremont, the subsurface is a mix of young alluvial deposits and deep bay muds left by the ancient Lake Merced. Many geotechnical reports we review underestimate the fines content in these soils. A proper grain size analysis separates sand, silt, and clay fractions using both sieve and hydrometer methods. This data feeds directly into the Unified Soil Classification System (USCS) per ASTM D2487. Without accurate particle size distribution, estimates for settlement and drainage in Fremont can be off by a factor of two. The hydrometer phase is particularly critical for the silty clays that dominate the southern part of the city near Coyote Creek. Combining these results with a clasificacion de suelos study gives the full picture for foundation design.
The hydrometer phase is non-negotiable for Fremont silty clays — sieve-only results miss 40% of the particle size distribution.
Methodology and scope
A common mistake among local contractors is assuming that a simple sieve test is enough for Fremont soils. The fine-grained matrix here requires the hydrometer method to quantify particles below 75 microns. We follow ASTM D6913 for coarse fraction and ASTM D422 for the sedimentation analysis. The procedure involves:
Oven-drying and splitting the sample to obtain a representative portion
Wet sieving to separate the fine fraction from the coarse
Hydrometer readings at timed intervals to track clay settlement
Without this two-step approach, the plasticity index derived from Atterberg limits becomes unreliable. For pavement projects in Fremont, the fine fraction also influences CBR values, so we often pair the test with an ensayo CBR to verify bearing capacity under wet conditions.

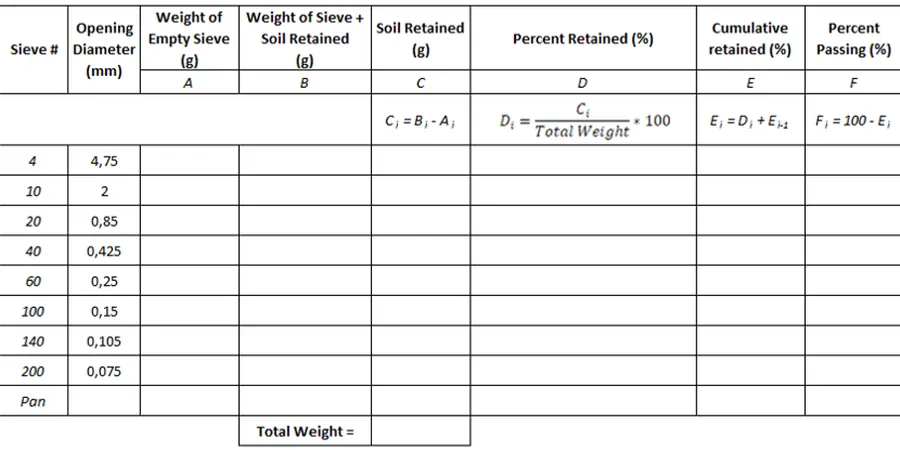

Technical reference image — Fremont
Local considerations
Fremont sits in Zone 4 seismic region, and the bay muds are susceptible to liquefaction and large settlements. A grain size analysis alone won't predict liquefaction potential, but it provides the essential input for the cyclic resistance ratio (CRR) curves. Without knowing the fines content, the simplified procedure by Seed & Idriss can overestimate or underestimate triggering. The fine-grained layers near the Dumbarton Bridge area require careful hydrometer work to distinguish between low-plasticity silt and high-plasticity clay. Misclassification here leads to inappropriate foundation types or unnecessary ground improvement costs.
Dry or wet sieving from 3-inch down to No. 200 sieve. We use mechanical shakers and follow ASTM D6913 for mass retained calculations. Results include cumulative percent passing and coefficient of uniformity (Cu).
02
Hydrometer Analysis (Fine Fraction)
Sedimentation method using ASTM D422 for particles below 75 microns. Readings taken at 0.5, 1, 2, 4, 8, 15, 30, 60, 120, 240, and 1440 minutes. Data corrected for temperature and dispersant effects.
Applicable standards
ASTM D6913-17: Standard Test Methods for Particle-Size Distribution (Gradation) of Soils Using Sieve Analysis, ASTM D422-63 (2019): Standard Test Method for Particle-Size Analysis of Soils (Hydrometer), ASTM D2487-17: Standard Practice for Classification of Soils for Engineering Purposes (USCS)
Frequently asked questions
What is the difference between sieve and hydrometer analysis?
Sieve analysis separates particles down to 75 microns using mesh screens. Hydrometer analysis measures the sedimentation rate of particles smaller than 75 microns using Stokes' law. For Fremont's silty clays, both are needed to get the full particle size distribution.
How much does grain size analysis cost in Fremont?
The typical range for a combined sieve and hydrometer test is between US$110 and US$220 per sample, depending on the number of hydrometer readings and whether wet sieving is required. Volume discounts apply for multiple samples from the same project.
Why do I need grain size data for a residential foundation in Fremont?
The building code in California (IBC 2018) requires soil classification for any structure. Grain size data determines the USCS group, which affects allowable bearing capacity, shrink-swell potential, and drainage. In Fremont, where bay muds and alluvial clays vary within a single lot, accurate classification avoids differential settlement.
Can you perform same-day grain size analysis in Fremont?
A full sieve and hydrometer test requires 24 hours for the sedimentation phase. We can provide preliminary sieve results within 4 hours, but the hydrometer curve needs overnight settling. For urgent projects, we prioritize the sieve portion and deliver the hydrometer data the next morning.
